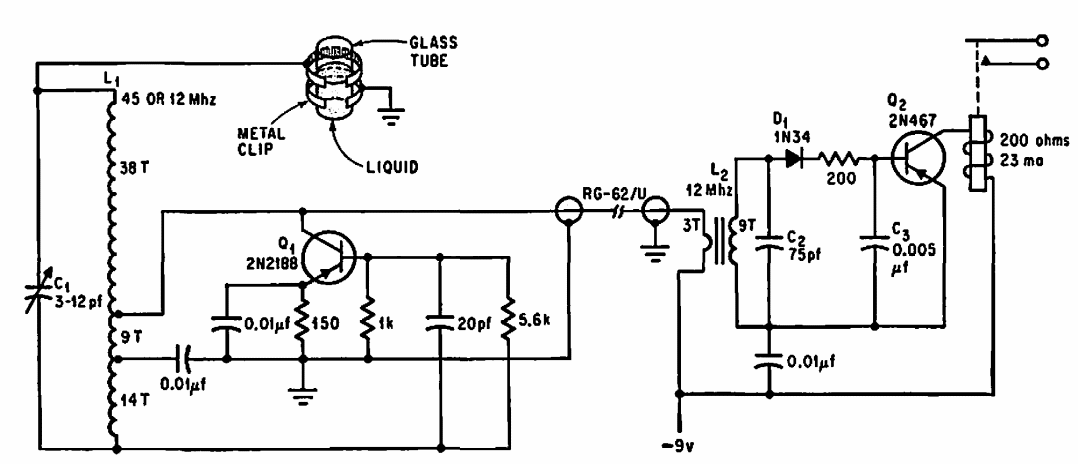

This sensor uses a capacitive system that oscillates at 45 MHz with the empty glass tube. Its frequency drops to 12 MHz when full thus causing the relay to trigger on. The circuit is from a 1967 American publication.
