Preheating circuit (CB7187E)

Details
Written by: Newton C. Braga

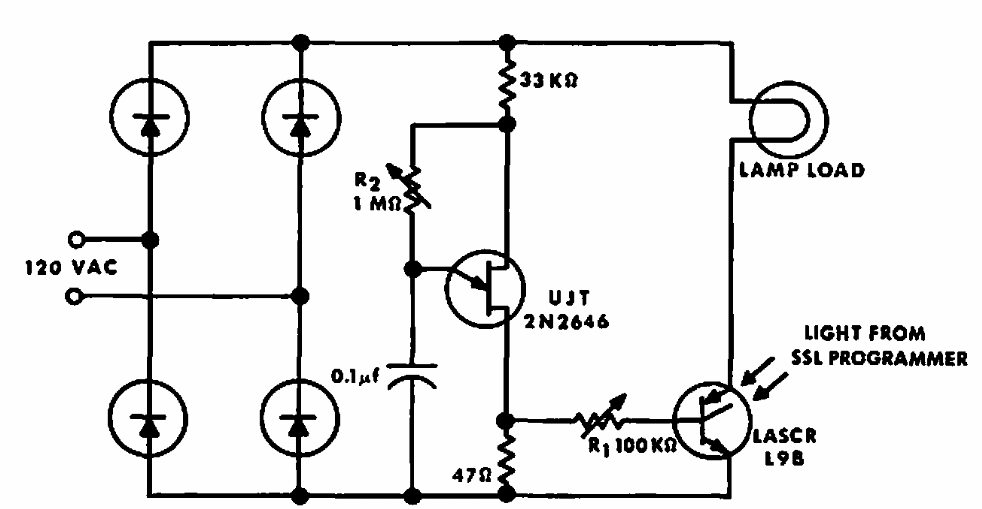

     This circuit was found in a General Electric manual from 1970. Its purpose is to provide a preheat to a filament lamp.
