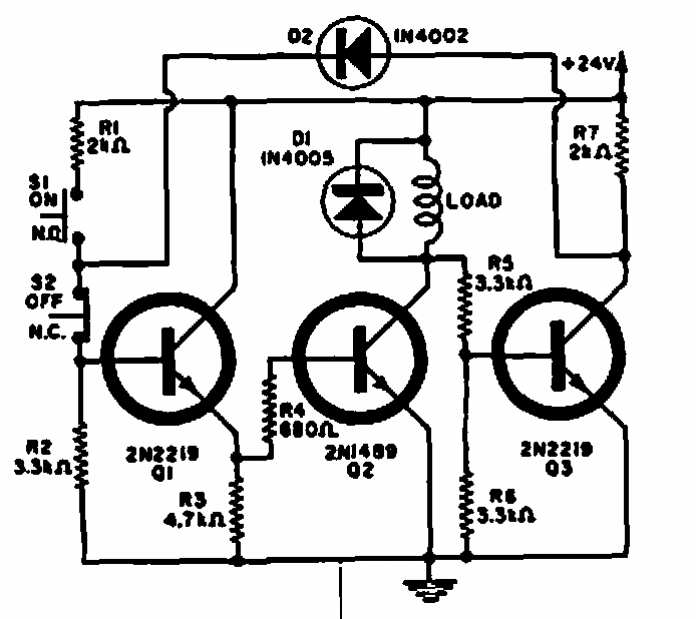

We found this circuit in a 1967 El3ectronics World. The transistors are from the era but can be replaced by current equivalents. The circuit is for 5 A loads.
| Clique na imagem para ampliar |
Locked solenoid driver (CB7232E)
- Details
- Written by: Newton C. Braga
