High current buffer (CB7280E)

Details
Written by: Newton C. Braga

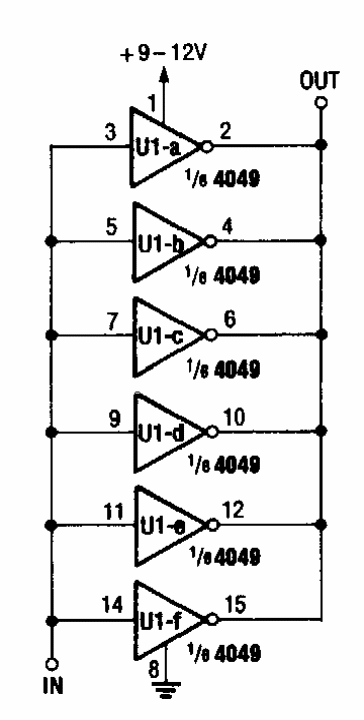

     Suggested by Popular Electronics, it is a digital amplifier, for pulses with frequencies up to a few megahertz.
