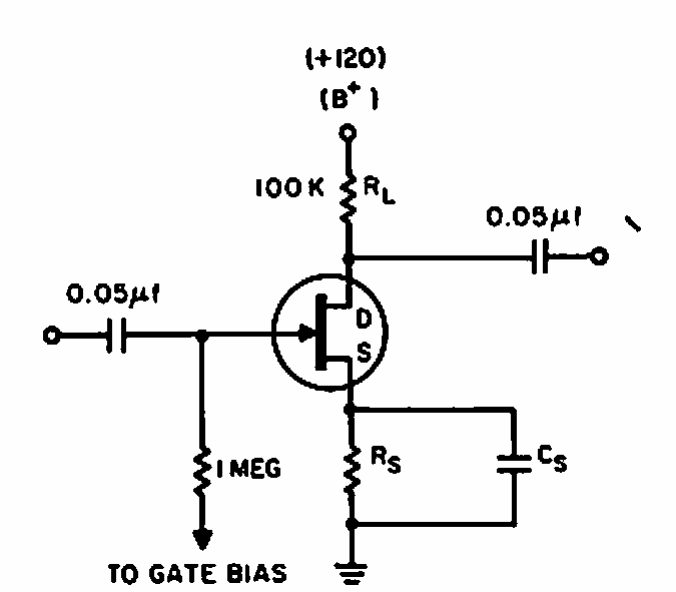

Auto Bias for FET (CB6125E)

This configuration is from a 1964 US documentation valid for any FET. The range of power voltages depends on the application.
