Oscillator with AGC (CB6321E)

Details
Written by: Newton C. Braga

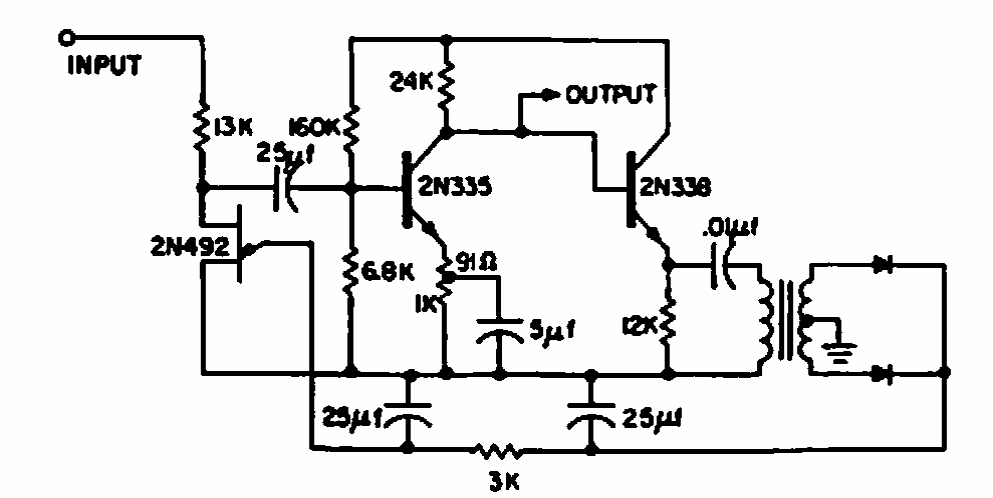

     This circuit was found in a 1964 documentation. It shows how to achieve automatic gain control for an oscillator. The transistors are of the time and the circuit controls signals from 2.6 to 3.1 kHz.




| Clique na imagem para ampliar |
