Headlight Time Relay (CB6378E)

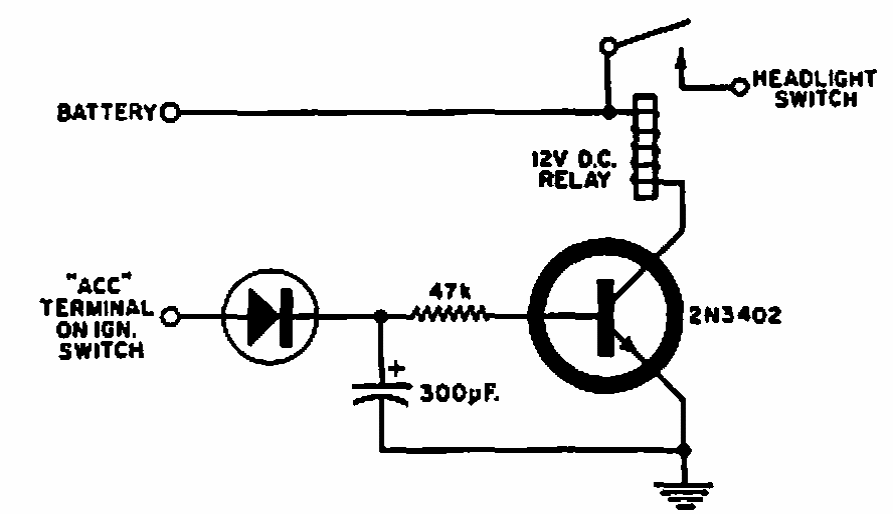

This circuit is from an Electronics World of 1967. The circuit slows down the activation of a headlight. The capacitor determines the delay time.
