Emitter follower (CB6811E)

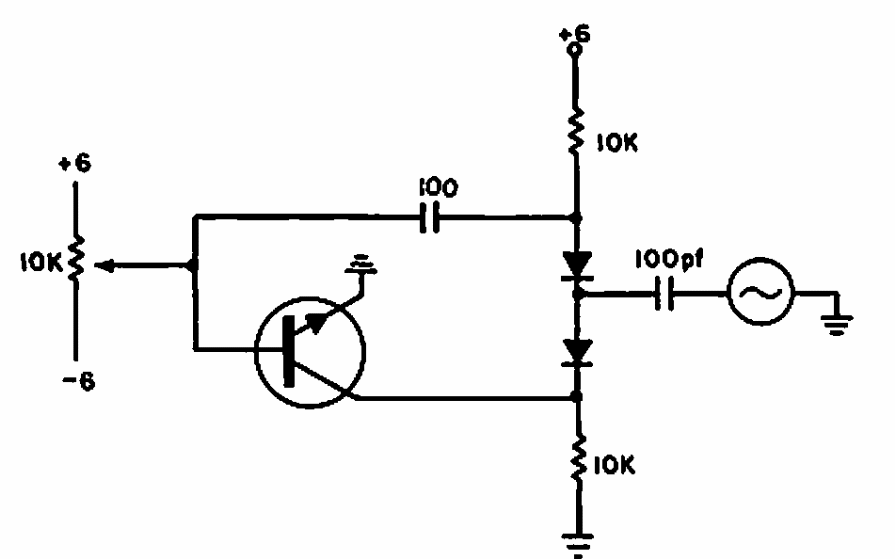

This emitter follower simulator circuit was obtained in a 1964 documentation. The circuit can be designed based on a modern transistor.

| Clique na imagem para ampliar |

Stable Oscillator (CB22520E)
This oscillator appeared in the September 1950 Radio Electronics magazine. The frequency is...
Half Wave Dimmer (CB5296E)
The SCR used in this 80's circuit depends on the load. The control is half wave and instead of the neon...
Common Emitter PNP Relay (CB25611E)
This relay shield was found in the October 1993 Electronics Now magazine. The circuit is powered by...
