Picoammeter (CB7346E)

Details
Written by: Newton C. Braga

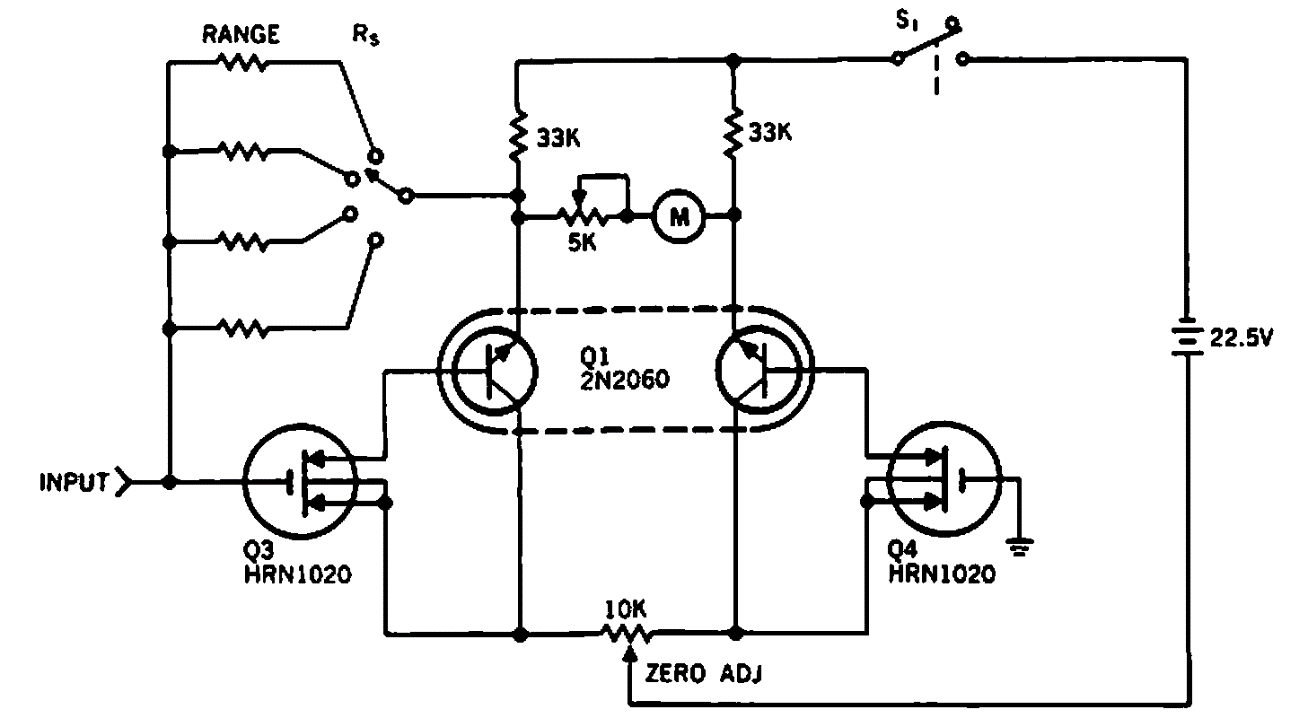

     Suggested by Hughes in 1968 documentation, this circuit makes use of a transistor matched pair and MOSFETs of the time. The circuit is capable of measuring extremely low currents according to the shunt values used.




| Clique na imagem para ampliar |
