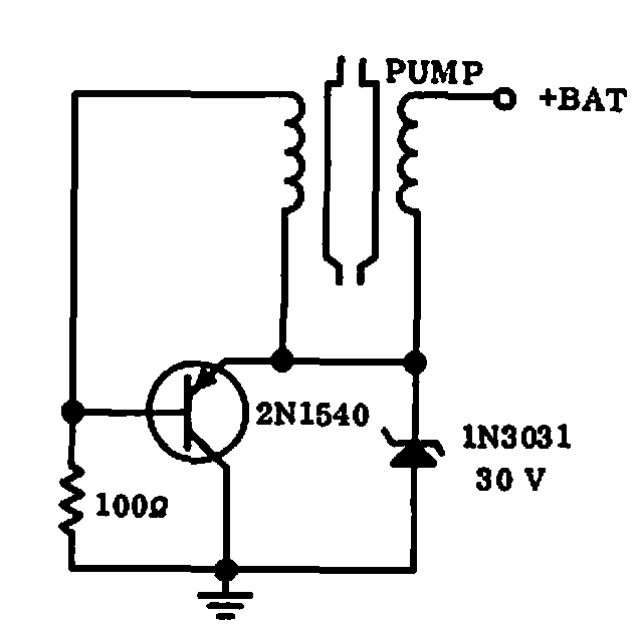

Found in a 1965 Motorola documentation this circuit drives magnetic-type fuel pumps found in cars of the era. The frequency is given by the inductance of the pump windings.
Fuel Pump Oscillator (CB6338E)
- Details
- Written by: Newton C. Braga
Found in a 1965 Motorola documentation this circuit drives magnetic-type fuel pumps found in cars of the era. The frequency is given by the inductance of the pump windings.
