Amplifier for Subwoofer (CB6989E)

Details
Written by: Newton C. Braga

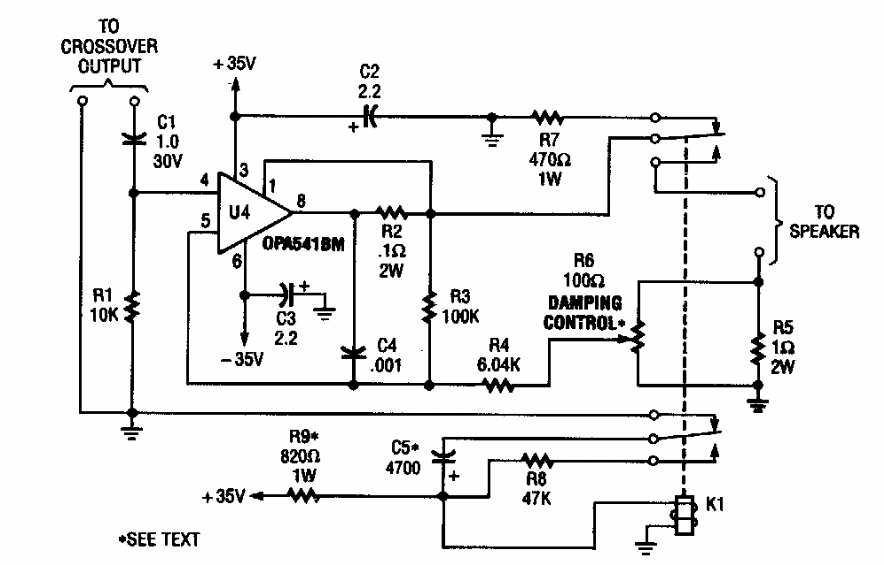

    Suggested by an old Popular Electronics, this circuit is based on an uncommon integrated today, the OPA541BM. The circuit provides 100 W at 8 ohms load and requires a relatively high voltage supply from a symmetrical source.




| Clique na imagem para ampliar |
