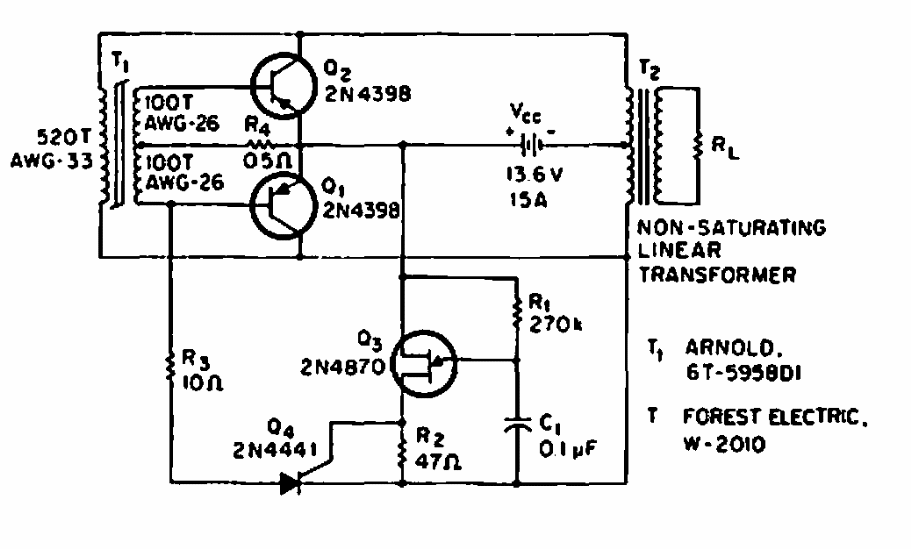

200 W 12 V to 115 V inverter (CB7153E)

This circuit was found in Philips documentation from 1969. The components are from the time including transformers that are commercial types.

| Clique na imagem para ampliar |
