Touch Switch (CB6451E)

Details
Written by: Newton C. Braga

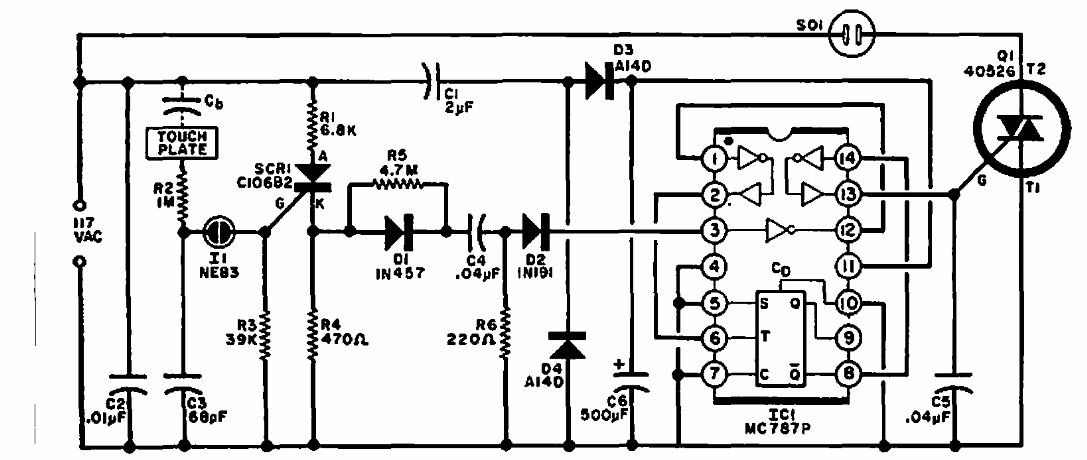

     We found this touch control on a Popular Electronics from 1970. The circuit makes use of an integrated of the time. It can be adapted to use modern equivalent components.




| Clique na imagem para ampliar |
