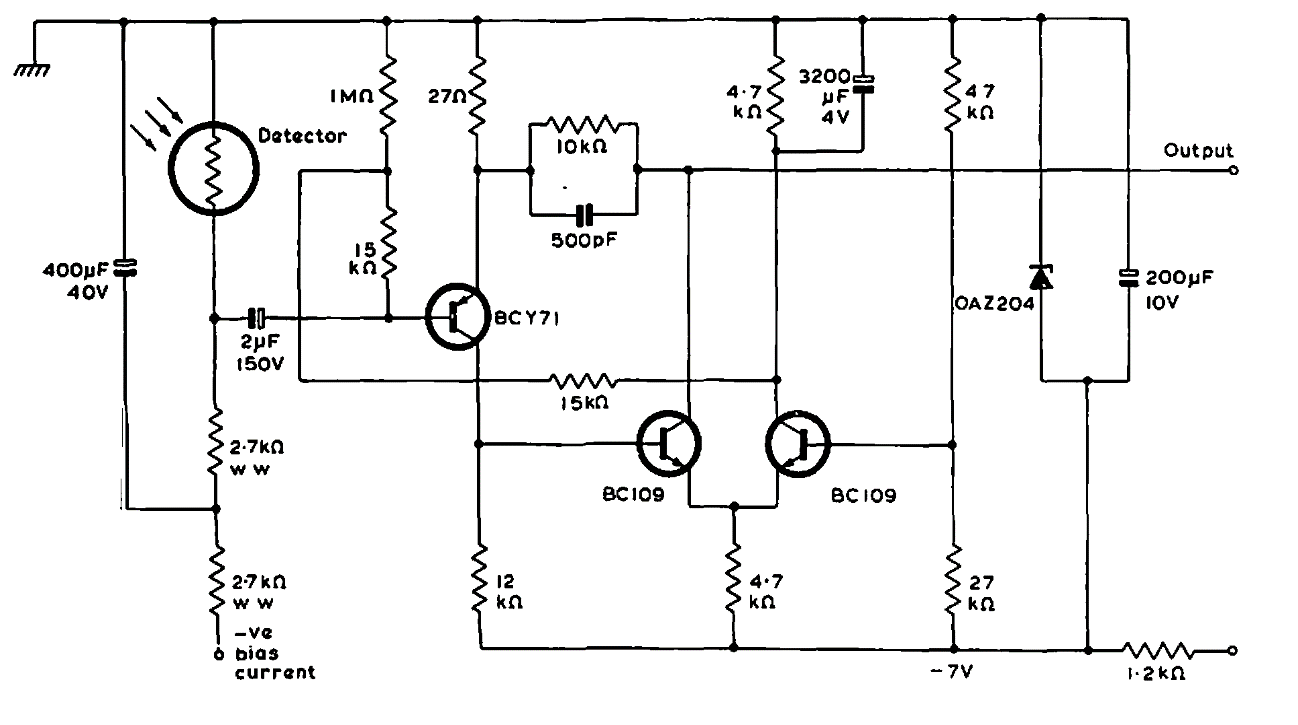

This type of sensor was used in sensitive infrared systems from the 1960s. This circuit was found in sensors with a Nipkow disk. Equivalent transistors can be used, but the sensor is no longer easily found.
| Clique na imagem para ampliar |
Circuit with sensor (CB7104E)
- Details
- Written by: Newton C. Braga
