Multimeter adapter (CB7345E)

Details
Written by: Newton C. Braga

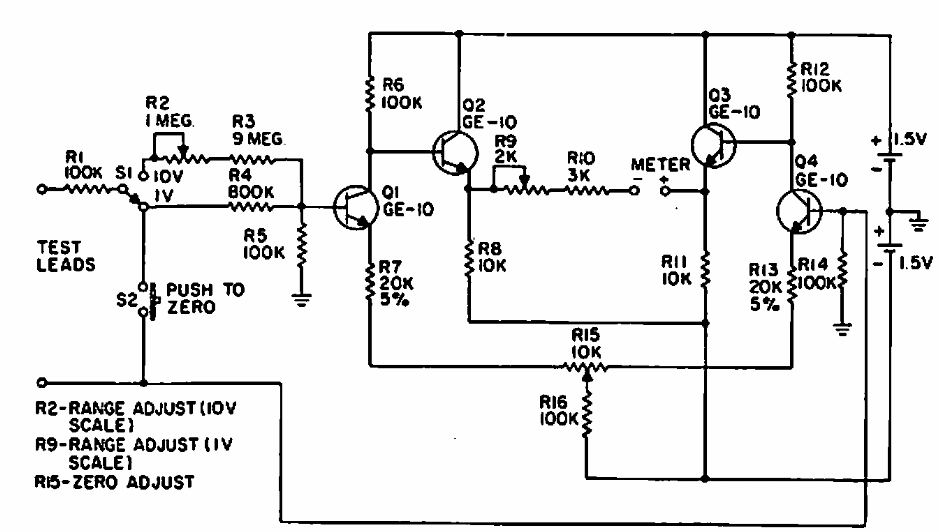

     This circuit, suggested by General Electric, increases the sensitivity of a common multimeter to 1 M / V. The circuit can be designed with modern equivalent transistors. The scale used is 60 uA or 100 uA.
