Speedometer (CB6337E)

Details
Written by: Newton C. Braga

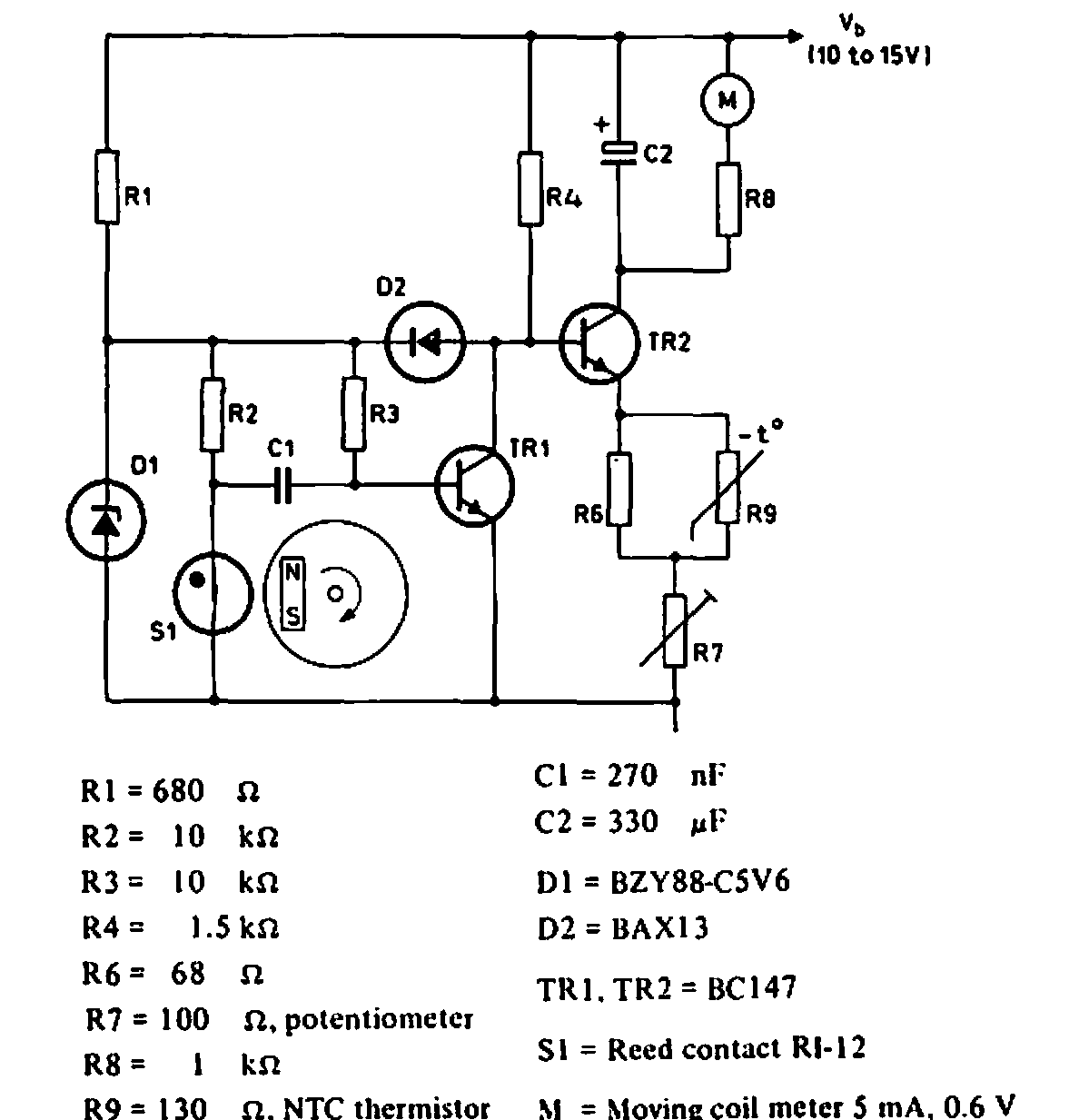

     This circuit was found in a Dutch documentation from 1970. The circuit makes use of semiconductors that have current equivalents and is indicated by a 0-5 mA milliammeter.
