Simple Assisted Ignition (CB6392E)

Details
Written by: Newton C. Braga

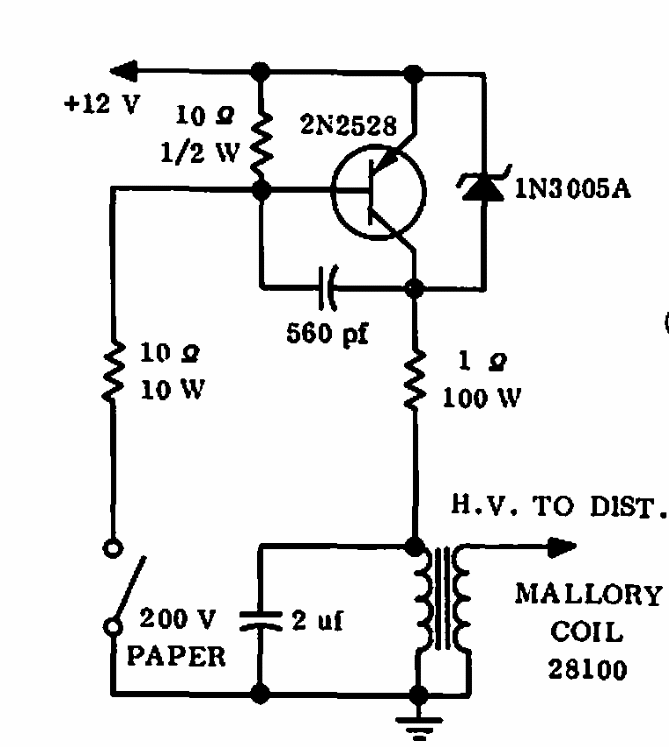

     This Motorola circuit uses only one transistor. The circuit is from 1965 documentation. The transistor must have a collector current rated at least to 12 A.




| Clique na imagem para ampliar |
