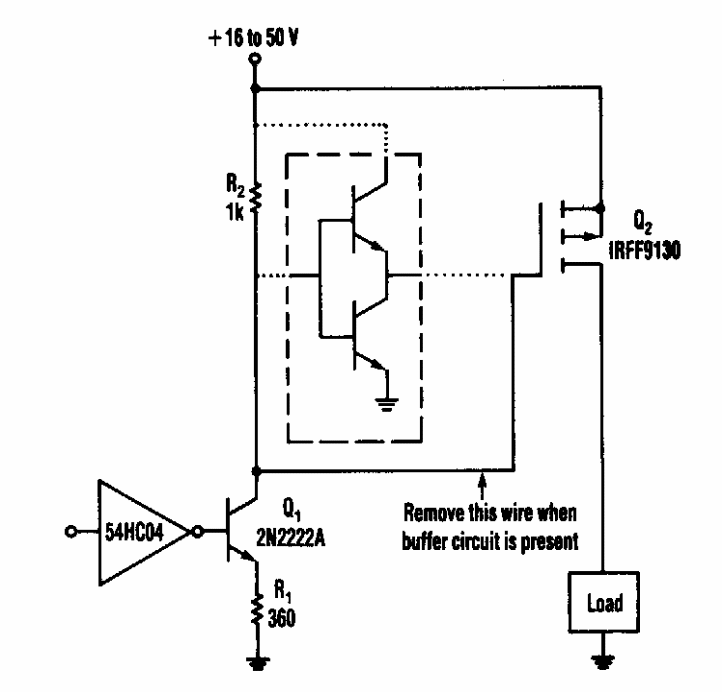

This circuit was found in an Electronic Design from the 80's. It shows how to use a MOSFET driver with two complementary transistors in an adaptation for a common direct control.
| Clique na imagem para ampliar |
MOSFET Driver (CB7035E)
- Details
- Written by: Newton C. Braga
