Flashlights On Warning (CB6376E)

Details
Written by: Newton C. Braga

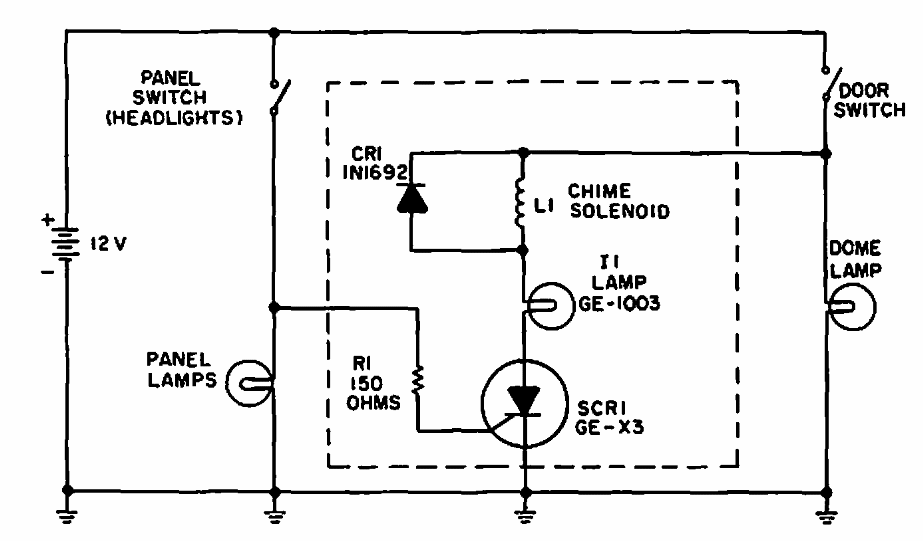

    This circuit was found in a 1965 General Electric manual. It is intended for cars that have negative ground. At the time there were vehicles with positive mass.




| Clique na imagem para ampliar |
