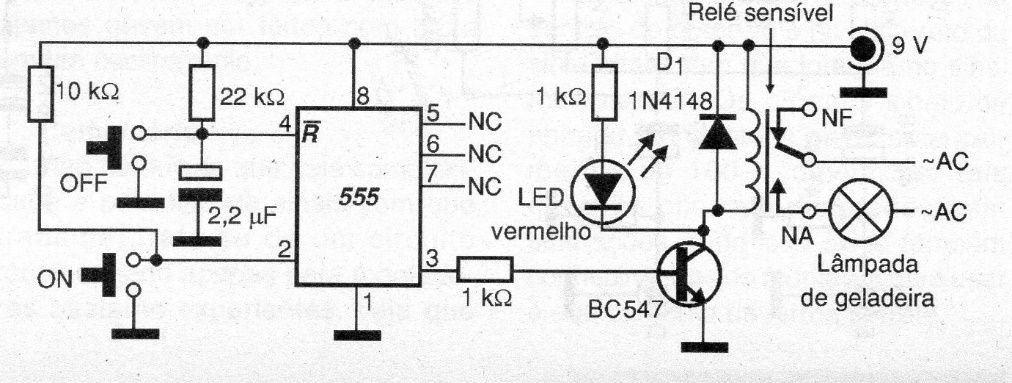

This circuit allows to activate a relay in a biestable way using a 555. The pressure switches arm and disarm the relay; The circuit can be powered by voltages from 6 to 12 V depending on the voltage of the relay coil.
