Locked Alarm (CB7230E)

Details
Written by: Newton C. Braga

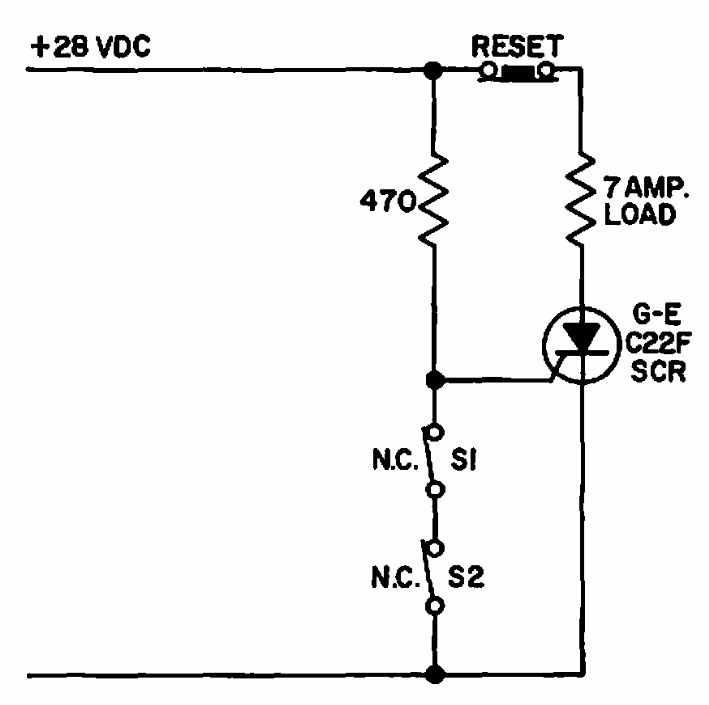

     Suggested by General Electric in a 1965 document, this circuit can accept a greater number of sensors. When anyone opens the SCR it fires powering the load.
