Dimmer with triac and SBS (CB7212E)

Details
Written by: Newton C. Braga

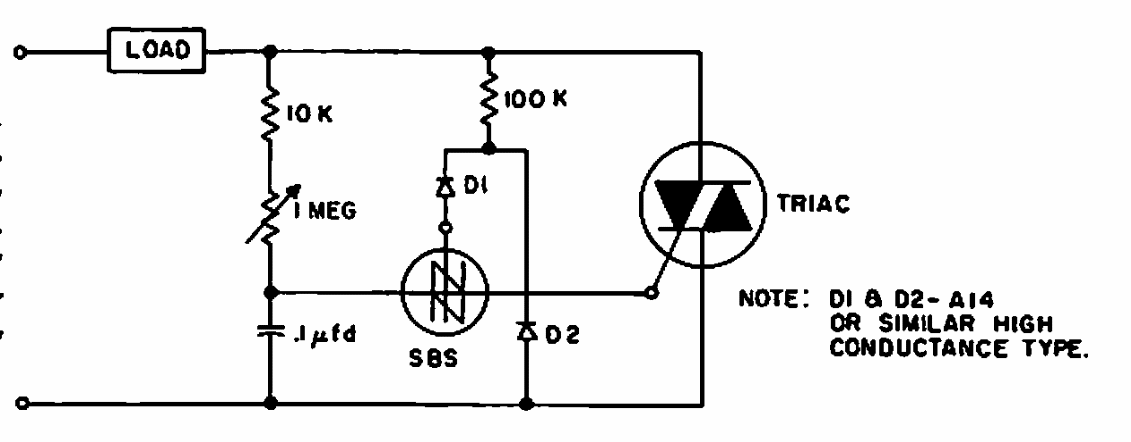

     This dimmer for 12 V incandescent lamps was found in a 1966 General Electric documentation. The circuit has a SBS trigger programmation.
