Short Pulse Indicator (CB6697E)

Details
Written by: Newton C. Braga

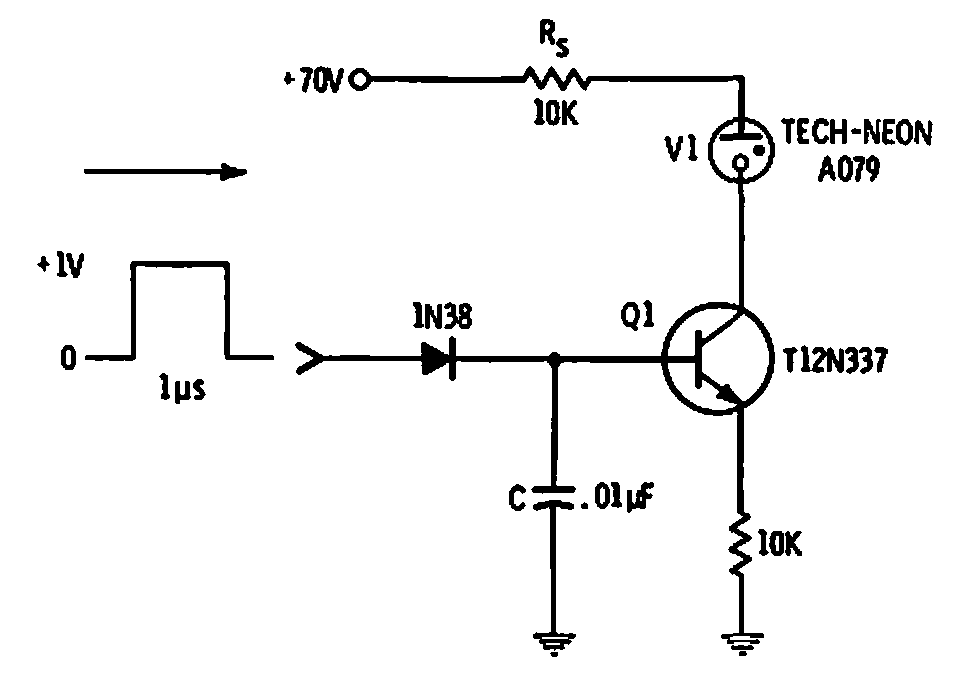

     This circuit keeps the neon lamp on for a moment when it receives a pulse. The turn on time depends on C. The transistor is of the old type, from the 60's, when the circuit was published.
