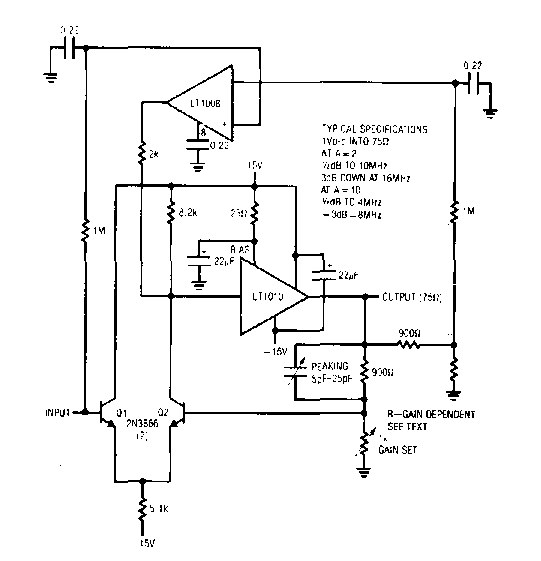

This circuit was obtained from Linear Technology documentation from the 90s. The circuit uses components from that time and has gains between 1 and 10. The pass band reaches 4 MHz.
DC stabilized amplifier (CB6788E)
- Details
- Written by: Newton C. Braga
