Power supply for heater (T1682E)

Details
Written by: Newton C. Braga

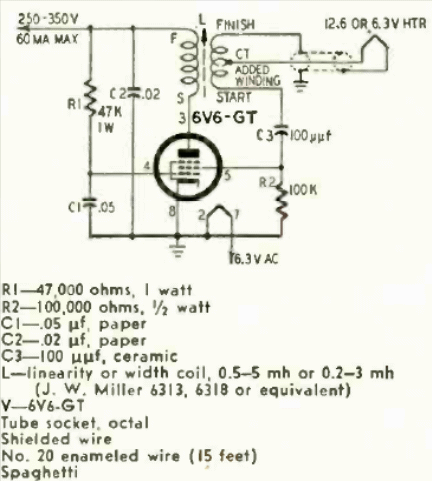

This noiseless source for tube heaters was found in a March 1958 Radio Electronics magazine. The circuit is for 12 and 6.3 V heaters.
