Audio millivoltmeter (T1720E)

Details
Written by: Newton C. Braga

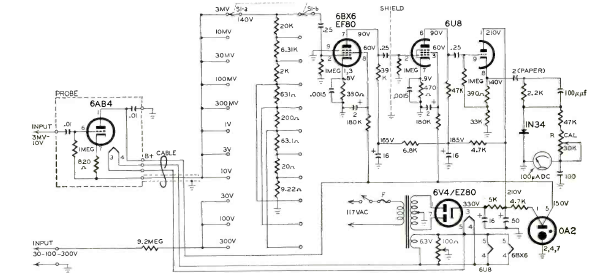

We found this circuit in the September 1959 Radio Electronics magazine. The multi-tube, multi-range circuit includes the power supply.
