Debounced Switch (CB830E)

Details: Written by: Newton C. Braga

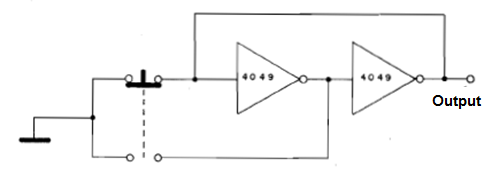

This switch is bounce free and is recommended for the control of CMOS circuits. The switch must be powered from the same voltage source of the controlled circuit.
