Bicolour LED Driver (CB13576E)

Details
Written by: Newton C. Braga

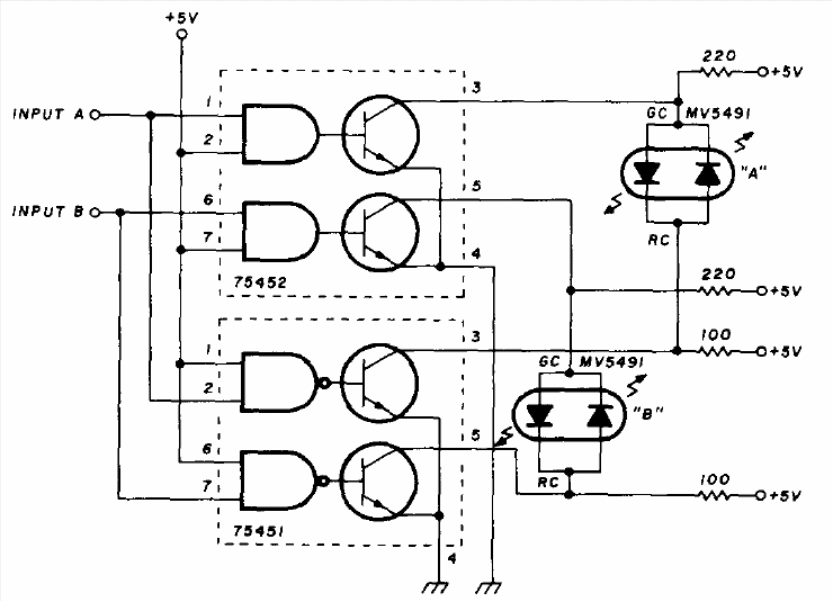

We found this circuit in an American publication from 1977. The circuit drives two LEDs according to the control of the inputs. The technology is TTL requiring 5 V to power supply.






| Clique na imagem para ampliar |
