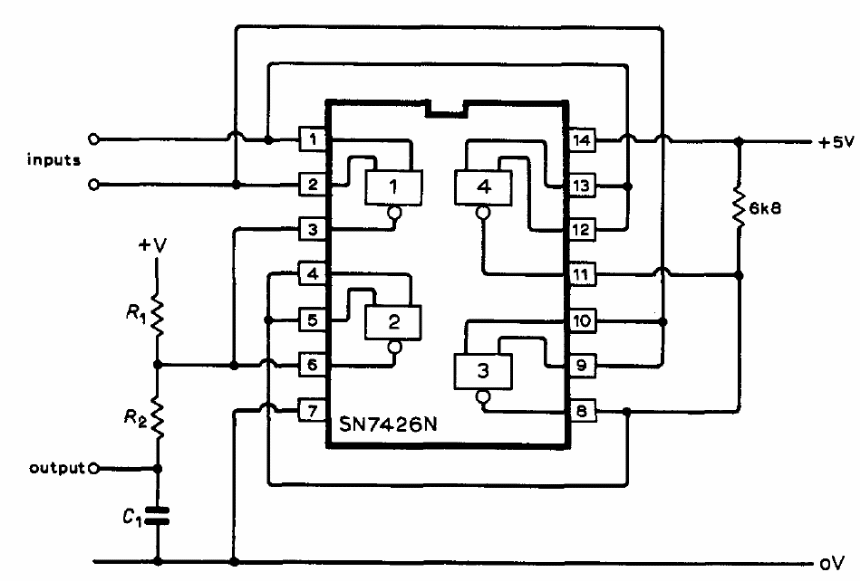

This circuit is from American documentation from 1973. It can be used to indicate when the logic input signals are out of phase. The circuit must be supplied with 5 V and the output must be calculated for the desired application.
