455 kHz Astable with the 741 (CB13599E)

Details
Written by: Newton C. Braga

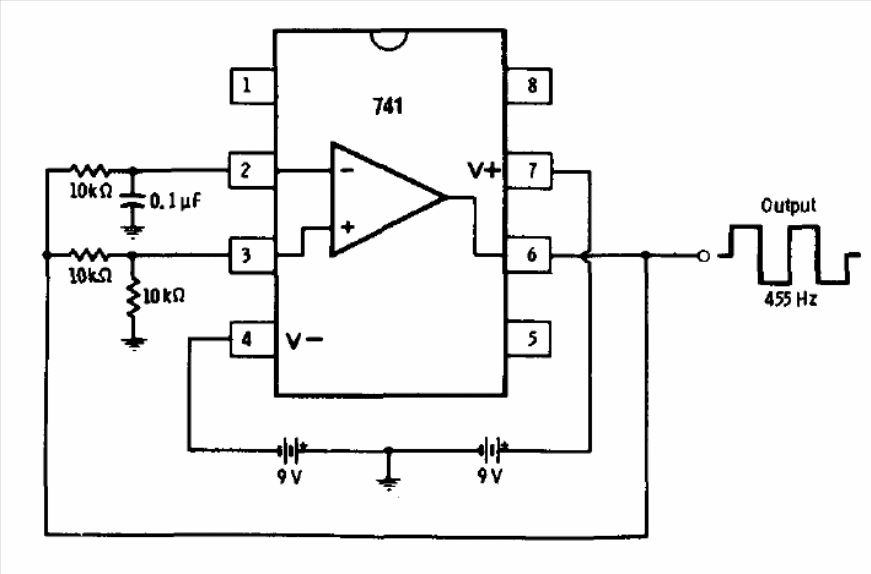

This circuit was obtained in a 1978 publication. The supply can be symmetrical from other voltages. Frequency can be changed by changing the capacitors.
