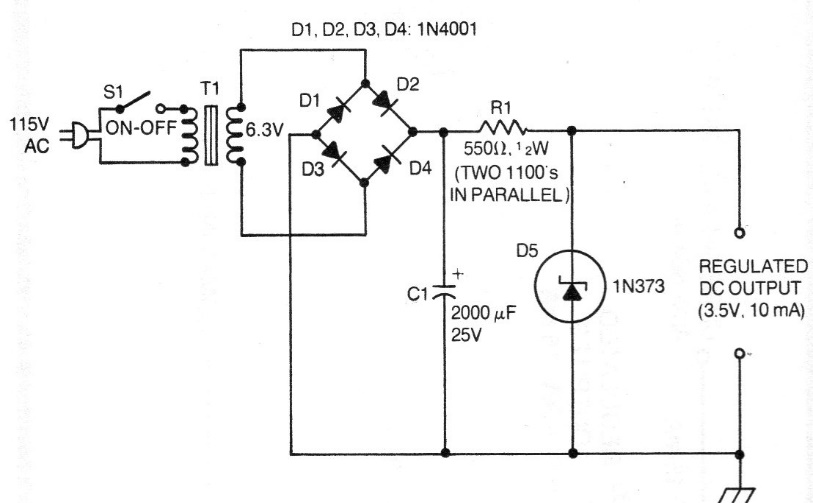

This common configuration source with diode bridge and single winding transformer was found in a publication in 1976. We can change the voltage according to the zener, which can have values between 1.5 and 6 V normally. The filter capacitor can be 2 200 uF and resistor R1 is wire and must be recalculated for other output voltages.
