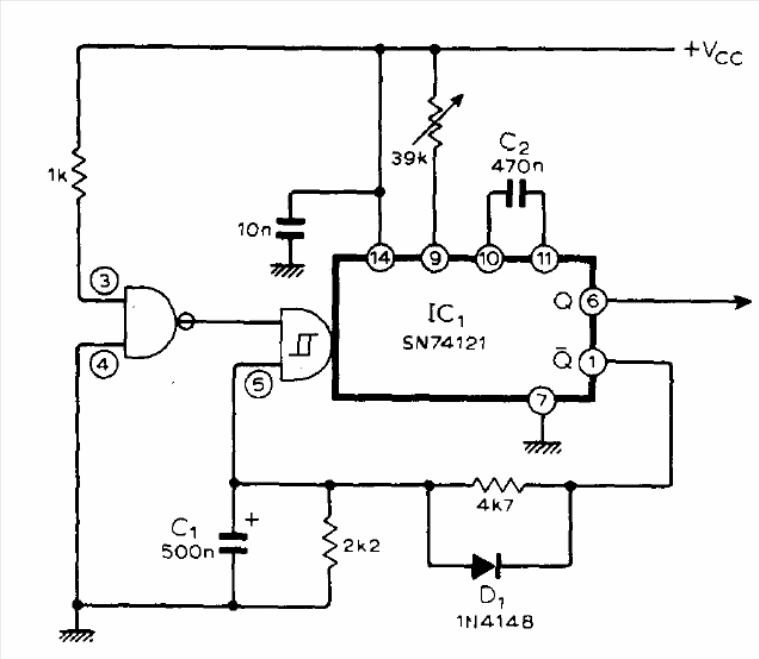

This circuit generates a PWM control signal using TTL logic. We found this configuration in a 1976 documentation. The supply is 5 V, but the TTL signal can be used to control a power stage with a different voltage.
| Clique na imagem para ampliar |
TTL PWM (CB13578E)
- Details
- Written by: Newton C. Braga
