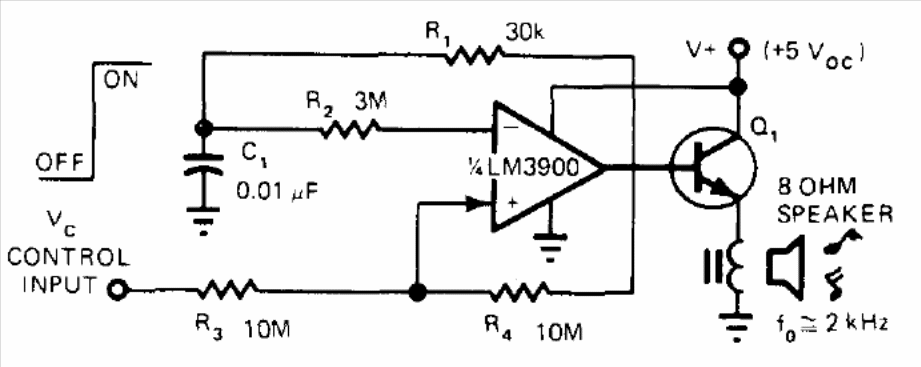

This circuit is from a 1977 publication, serving to produce sound effects in games, as it is triggered by a digital signal. The output transistor can be a BC548 and the supply is made with 5 V. The resistors of non-common values can be approximated by the current standards. The speaker can have impedances of 8 to 100 ohms, depending on the intensity of the desired sound.
