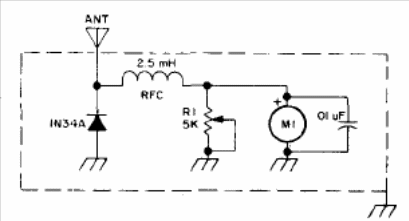

This circuit, which operates with frequency up to a few tens of megahertz, is from a 1976 publication. The antenna is telescopic, and the adjustment pot can be 4k7. The instrument can have 200 uA or 1 mA full scale.
Field Strength Meter (CB13403E)
- Details
- Written by: Newton C. Braga
