Signal Injector (CB13531E)

Details
Written by: Newton C. Braga

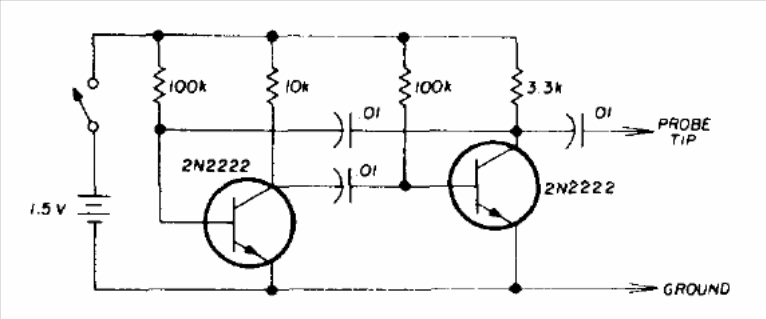

This traditional signal injector configuration was obtained in a 1977 amateur radio manual. The frequency is given by the capacitors and the supply can be made with 1.5 or 3 V.




| Clique na imagem para ampliar |
