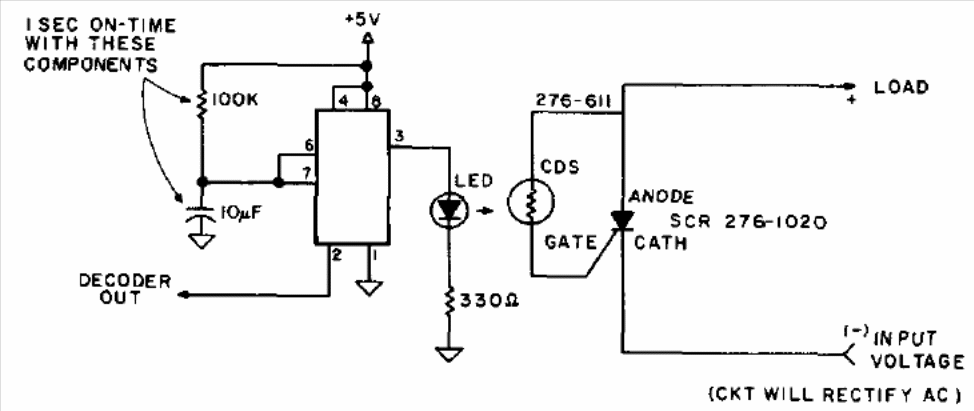

This LDR interface circuit allows controlling an AC load with an SCR from digital signals. The integrated circuit is 555. The circuit is from 1977 documentation. The circuit can be adapted for microcontrolled applications.
