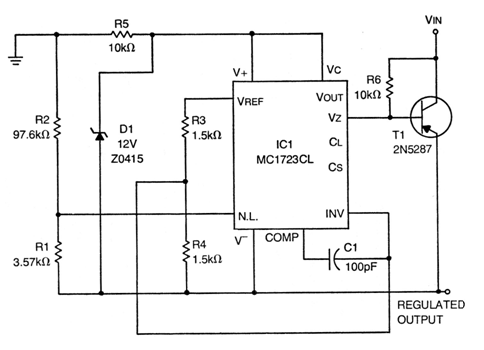

This circuit regulates negative voltages based on regulator 723. The maximum output current will depend on the transistor used, being in the order of 200 mA for a BD136. The accuracy of the output voltage depends on resistors R1 and R2. The circuit can work with high input voltages if appropriate transistors are used. The circuit is from American documentation from the 70s.
