In this circuit, from a 1974 publication the capacitor must be 1 uF and R1 10k. R2 must be 75k for greater accuracy, component tolerances must be tight. The supply must be made with voltages from 5 to 15 V.
| Clique na imagem para ampliar |

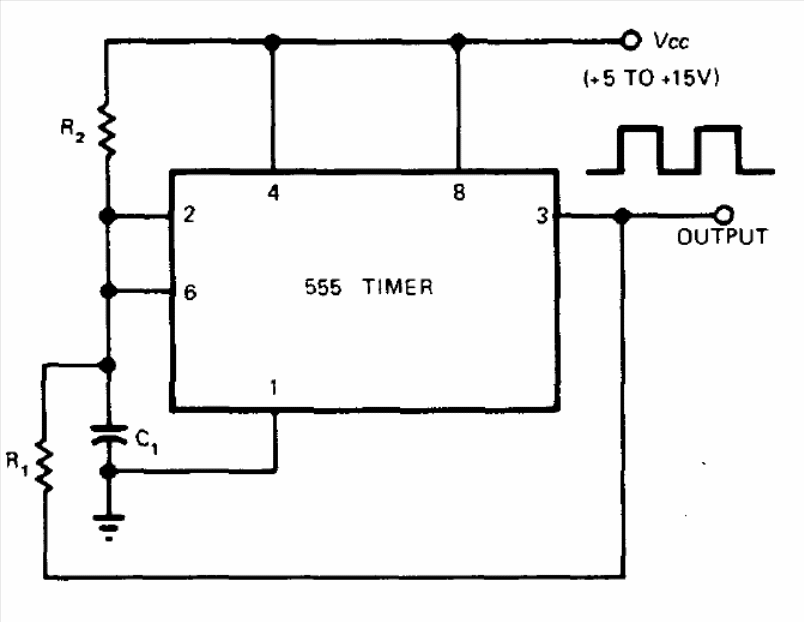

60 Hz x 50% Active Cycle 555 (CB13455E)
