Voltage x Frequency Converter (CB13559E)

Details
Written by: Newton C. Braga

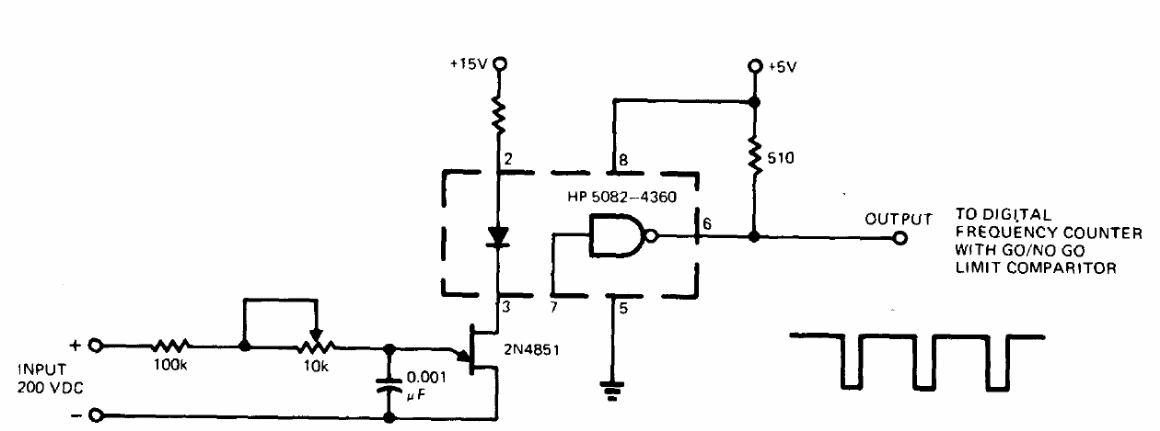

This circuit converts a high voltage into a frequency using an optical coupler. The transistor can be 2N2646 and the coupler admits equivalent. The circuit is from a 1974 publication.




| Clique na imagem para ampliar |
