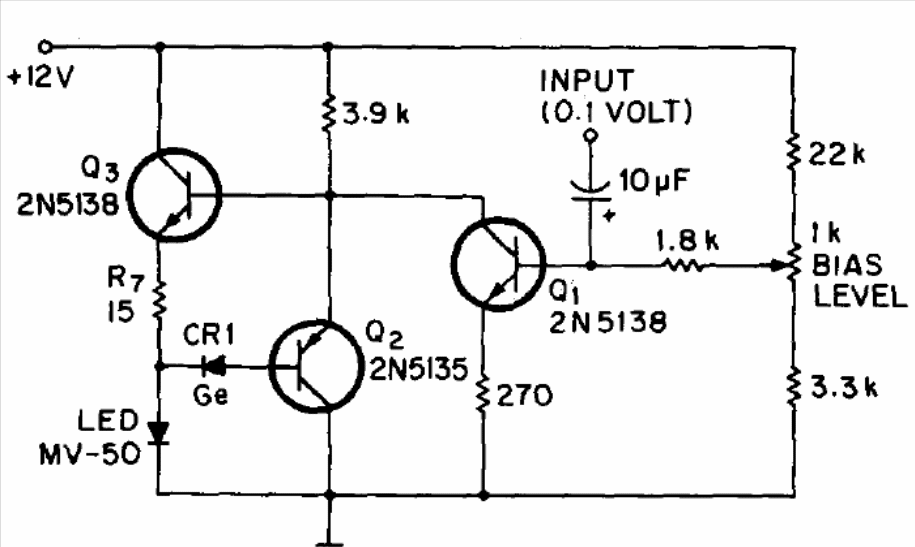

We found this circuit in a 1971 documentation. The circuit can be assembled with more modern transistors such as BC548 for Q1, BC558 for Q2 and BD135 for Q3.
| Clique na imagem para ampliar |
1 MHz LED Modulator (CB13535E)
