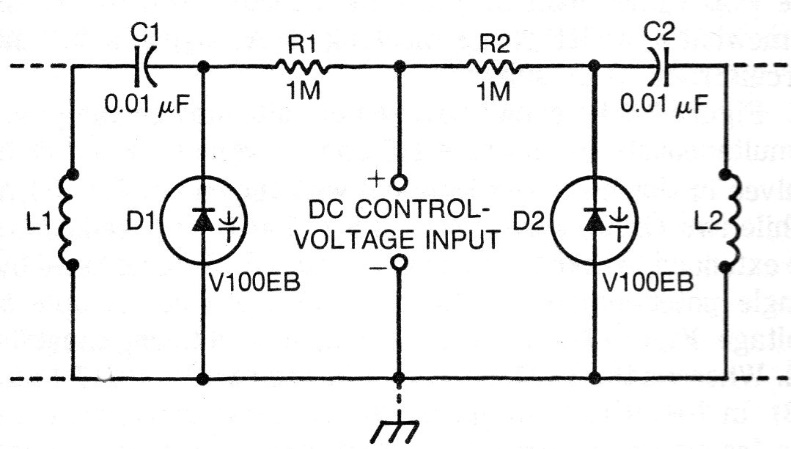

In the figure we have the way to use a single control voltage to act on two varicaps simultaneously in two tuning circuits with L1 and L2. The circuits can have different frequencies and the control voltage depends on the varicap. For types of the BB series it can reach more than 20 V. The circuit is from a technical documentation from the 70s.
