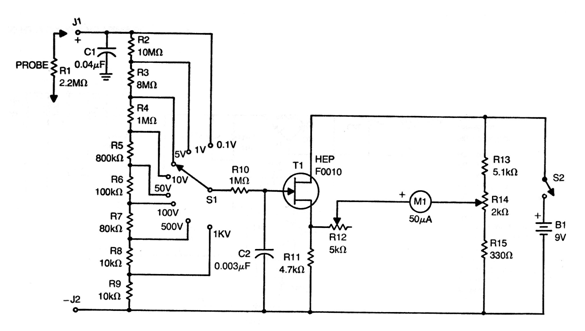

This traditional high sensitivity voltmeter circuit using a FET can employ the MPF102 or BF245 in its modern version. The adjustment trimpot R12 can be 4k7 and R14 2k2. The other components are common. The circuit measures voltages on 7 scales selected by a rotary switch. The circuit is powered by a 9 V battery and consumption is low.
