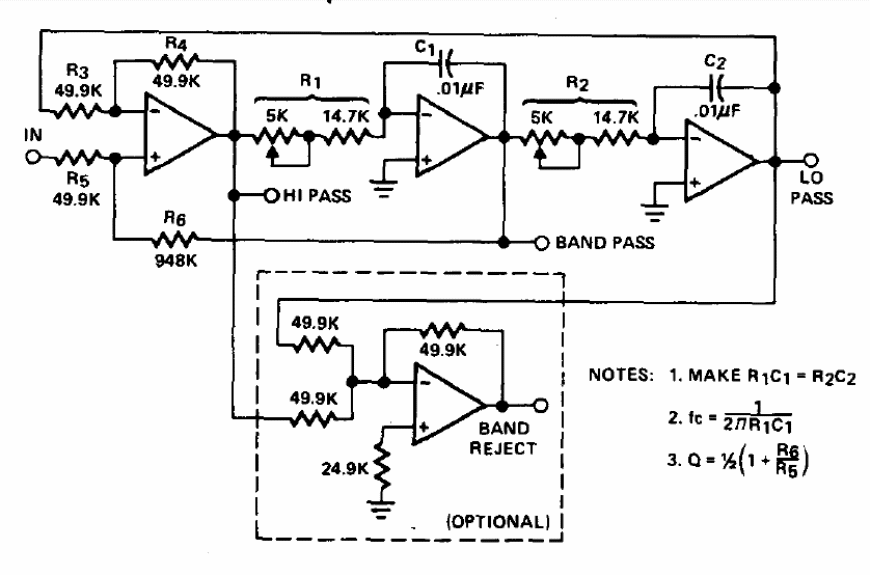

This filter has a factor Q = 10 (selectivity), and its frequency can be changed as shown in the formulas along the diagram. The application is from a 1977 publication. The source must be symmetrical, and the fourth block of the circuit is optional.
