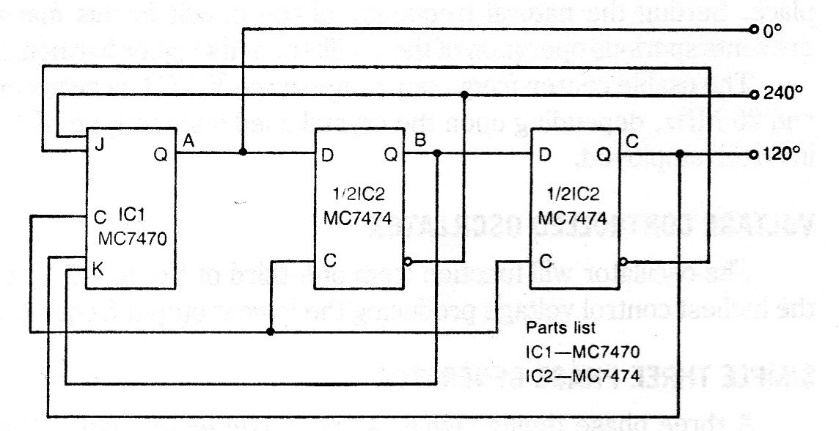

This circuit generates three outdated signals whose frequency is given by the time the signals propagate through the integrated circuits. The supply must be made with 5 V. The integrated circuits are of the conventional TTL series and the designation MC comes from the fact that it was found in an old Motorola documentation.
