1.5 kHz Notch Filter (CB13587E)

Details
Written by: Newton C. Braga

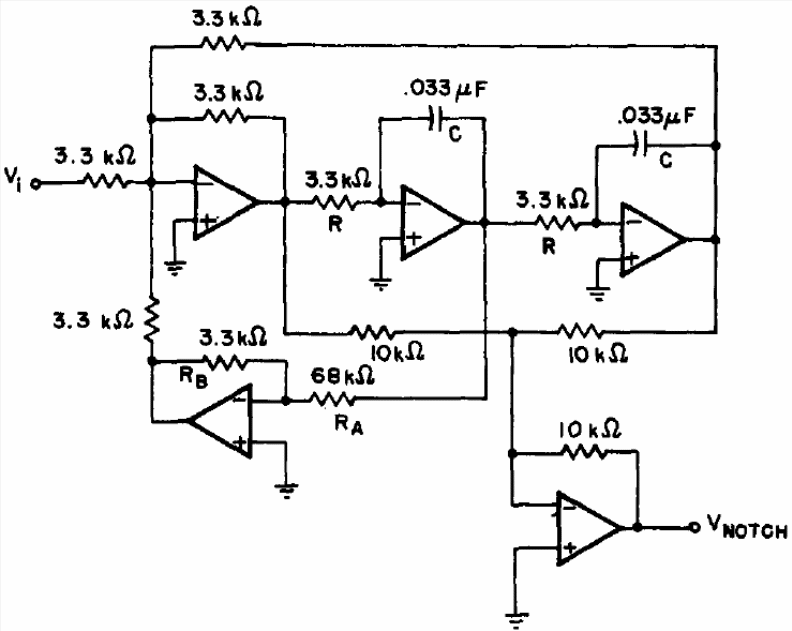

We found this circuit in a 1977 factory documentation. The operational amplifiers can be 741 and the symmetrical power supply. Capacitors can be changed for operation at other frequencies.




| Clique na imagem para ampliar |
