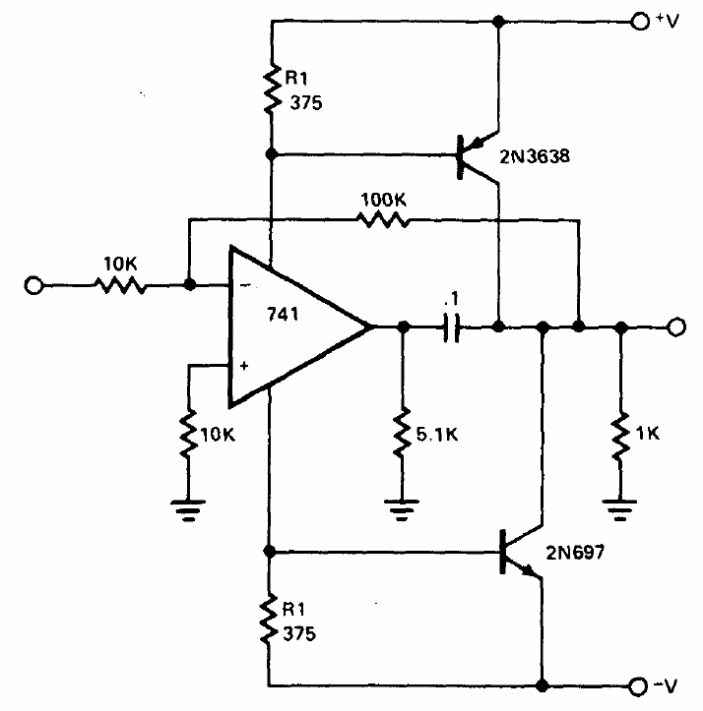

This circuit is from a 1977 Signetics integrated circuit manual. The output transistors can be BD136 and BD237 and the symmetrical supply can be from 6 to 12 V. The voltage gain is 10.
| Clique na imagem para ampliar |
Power Booster For the 741 (CB13539E)
- Details
- Written by: Newton C. Braga
