Photocell Bridge (CB13414E)

Details: Written by: Newton C. Braga

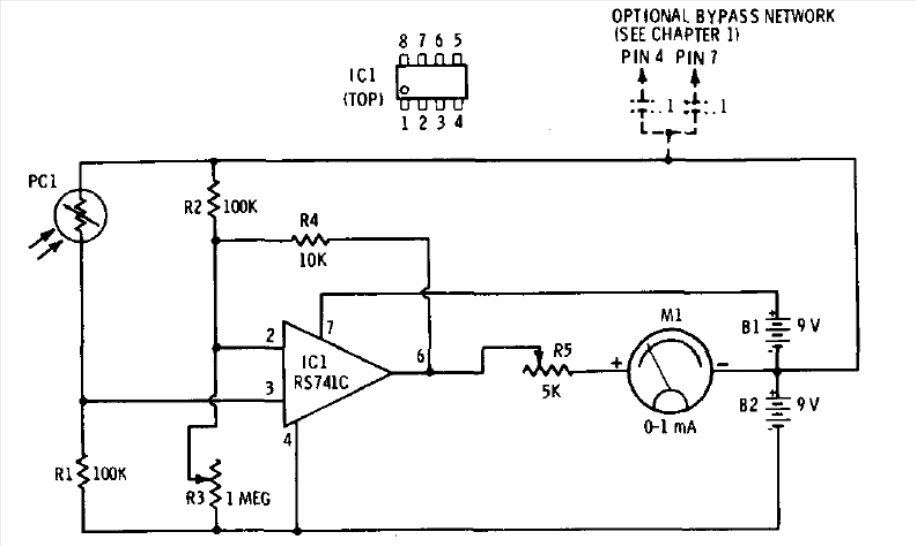

This circuit is from a 1977 Radio Shack manual. The photocell is an LDR and the operational one is a 741. Components with non-standard values can be approximated.

| Clique na imagem para ampliar |
