This circuit has a gain of 6 and a Q factor of 8.63. Operational amplifiers are common, like the 741, and the power supply must be symmetrical. The components can be changed for operation on other frequencies.
| Clique na imagem para ampliar |

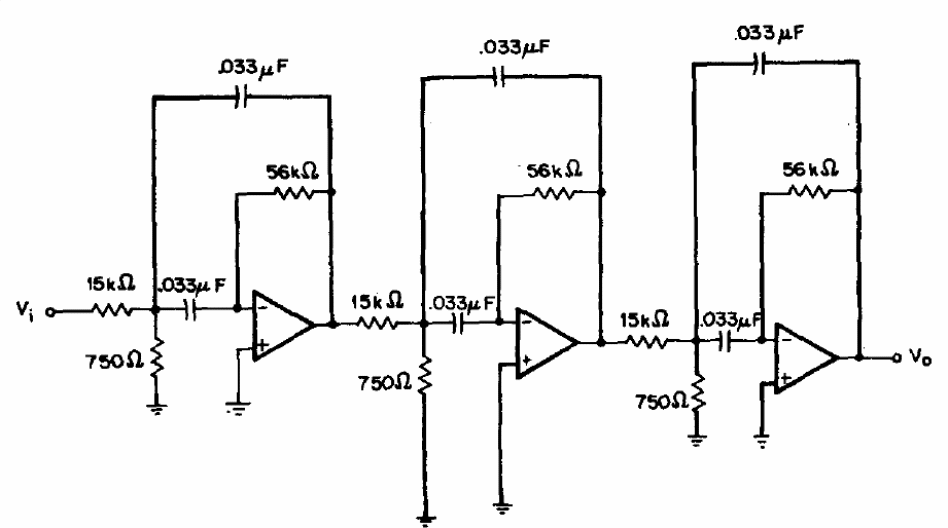

750 Hz Sixth Order Bandpass Filter (CB13566E)
