VCO with Potentiometer Control (CB13130E)

Details
Written by: Newton C. Braga

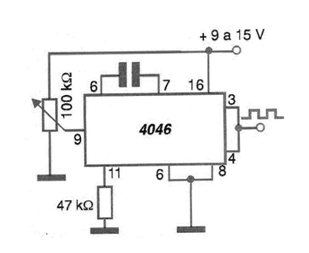

In the figure we show how to add a 100k ohms potentiometer to implement an oscillator controlled by this component. The signal generated by this circuit is rectangular with amplitude equal to the voltage used in its supply.
