This filter is from a 1977 manual. The integrated circuit is 741. The frequency is given by f = 1 / 6.28 x R x C. The power supply must be symmetrical, and the components changed for operation at other frequencies.
| Clique na imagem para ampliar |

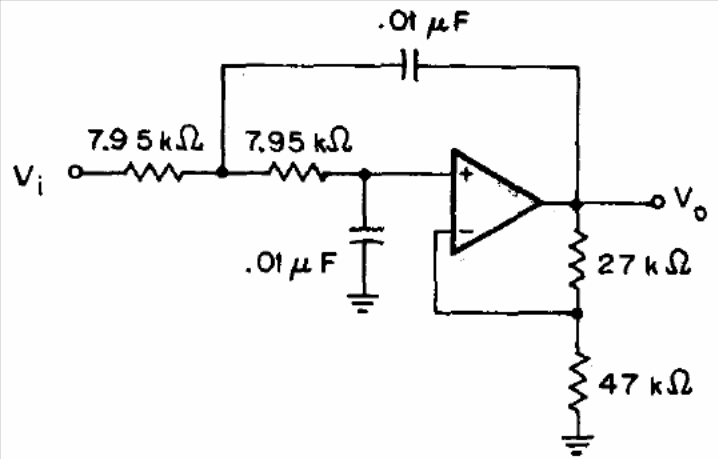

2 kHz Low Pass Filter (CB13594E)
- Details
- Written by: Newton C. Braga
